E-SHEN Remote & Challenging Area FTTX Solution
Remote & Challenging Area FTTX Solution
Connecting Communities Beyond Terrain Limits.
In rural, mountainous, island and other geographically complex regions, network deployment often requires extensive fiber laying, high investment and difficult maintenance. The E-SHEN Remote and Challenging Area FTTX Solution addresses these challenges with flexible networking models, edge-side device deployment and optimized optical resource utilization, enabling cost-effective broadband coverage even in remote environments.

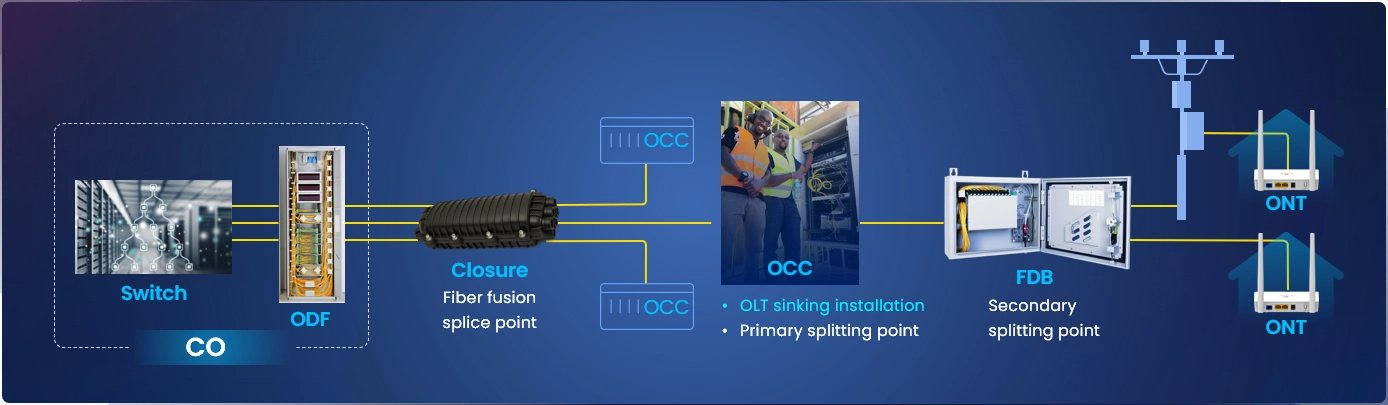

Solution Architecture Overview
| Central Office Core Switching and Optical Distribution | Closure as Fiber Fusion Splicing Point | OLT Sinking Deployment |
| At the CO, the Switch integrates with the ODF to aggregate upstream traffic and dispatch outbound fibers to target service areas. | The Closure serves as the main optical cable splice and routing node, minimizing additional infrastructure and improving deployment flexibility in scattered user environments. | OLT is installed at the OCC near communities or villages. This shortens transmission paths and acts as the Primary Splitting Point, improving network stability for long-distance coverage. |
| FDB Secondary Splitting and Local Distribution | ONT Last-Mile Connectivity |
| The FDB enables Secondary Splitting and flexible fiber branching to dispersed subscribers in complex terrains such as mountains and islands. ---www.e-shen.com | ONTs are installed in homes or business facilities, delivering stable fiber broadband access even in remote areas. ---www.e-shen.com |
Deployment Challenges Solved
| Complex and Varied Terrains | Scattered Users and Wide Coverage Requirements | High Cost of Optical Cable and Manpower |
| Mountains, forests, rivers and separated village layouts create difficulties in trenching, cabling and site installation. | Users are often distributed across large distances, making centralized equipment deployment. | Traditional centralized network topologies heavily rely on long-distance optical cables and frequent onsite maintenance, increasing both CAPEX and OPEX. |
Key Advantages of the Solution
 |  |
Low Deployment Cost By placing OLTs at the network edge and adopting short-distance fiber transmission, optical cable usage and infrastructure construction work are significantly reduced. ---www.e-shen.com | Strong Adaptability to Complex Terrains The distributed architecture allows flexible local service provisioning across mountainous villages, coastal islands or dispersed settlements without heavy civil engineering work. |
 |  |

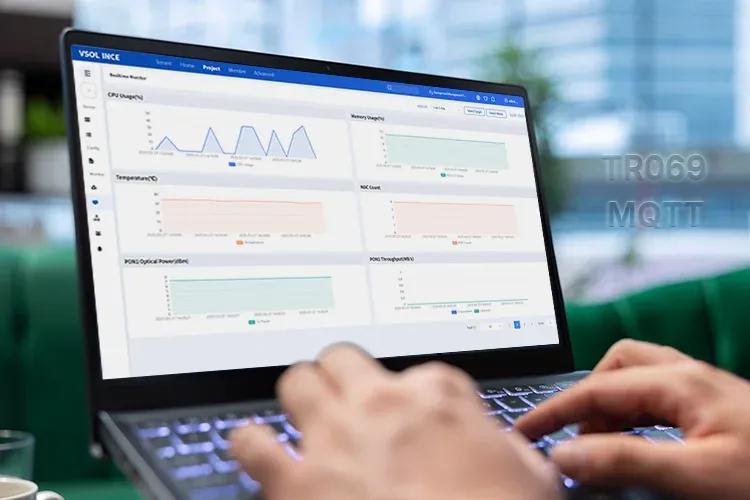

Saving Optical Cable Resources Primary splitting and localized access enable reuse of existing fiber routes where available and reduce the need for new backbone fiber deployments. ---www.e-shen.com | Easy Maintenance & Fast Fault Localization E-SHEN INCE Cloud Platform provides centralized visualization & remote troubleshooting, reducing repeated field visits and lowering long-term maintenance costs. |
Application Scenarios
 |  |  |  |
| Rural Areas | Mountainous | Islands | Towns |
Bring broadband services to remote family homes & rural enterprise clusters. | Overcome steep terrain and long-distance connectivity challenges. | Enable stable communication for remote communities on islands. | Cost-effectively expand broadband coverage to less urbanized regions. |
