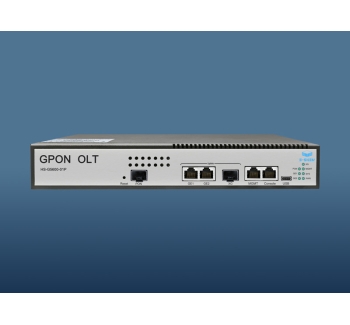

HS-G5600-01P GPON OLT 1-Port FTTx Mini Box OLT-E-SHEN Technology Co., Ltd.

Product Overview

The G5600-01P/G5500-02P is a highly integrated, medium-capacity GPON OLT designed for carriers, ISPs, enterprises, and campus applications. It complies with ITU-T G.984/G.988 technical standards, offering excellent openness, strong compatibility, high reliability, and comprehensive software features. It is widely applicable in network construction for FTTH access by carriers, VPNs, government and enterprise campuses, and campus networks.

E-SHEN: OLT ONU Factory

The G5600-01P/G5600-02P is a compact 1U-height device, making it easy to install and maintain while saving valuable space. Leveraging industry-leading technology, it offers an efficient GPON solution with optimized bandwidth utilization and robust Ethernet service support, enabling operators to deliver reliable service quality to users. The device also supports mixed networking with various types of ONUs, significantly reducing costs for operators.

E-SHEN: OLT ONU Factory

Key Features

Complies with ITU-T G.984/G.988 technical standards, ensuring strong interoperability.
Offers rich Layer 2/3 switching features and flexible management options.
Supports various link redundancy protocols such as FlexLink, STP, RSTP, MSTP, ERPS, and LACP.
Supports routing protocols including RIP, OSPF, BGP, ISIS, and IPv6.
Provides redundant power backup.
Supports terminal power-off alarm notifications.

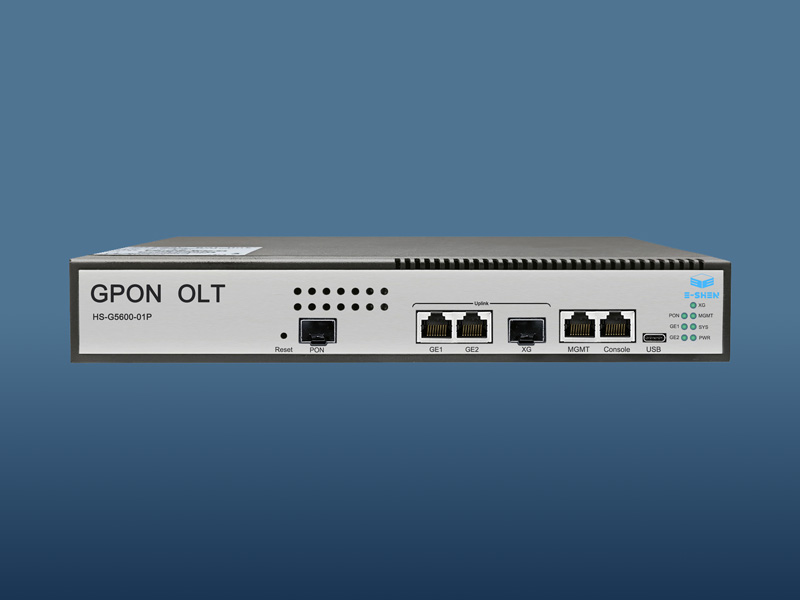

Product Interface

E-SHEN: OLT ONU Factory

G5600-01P/G5600-02P

1/2 * GPON port

2 * 10/100/1000M Base-T

1* 1000M Base-X SFP/

1*10GE SFP+

266 * 180 * 40mm

Purchase Info

Product Name

Product Description

G5600-01P

G5600-02P

1/2 * GPON port; 2 * 10/100/1000M Base-T;

1*1000M Base-X SFP/2*10GE SFP+;

Dual power supply optional（AC+DC,DC+DC）;

* The topology diagrams, architecture diagrams, and scenario deployment diagrams used on this page are for reference only and to meet specific needs in specific scenarios. If you need professional solutions for your actual scenario, please click "Customer Service Consultation" to submit your project requirements or consult online customer service. We will provide you with customized solutions.

* The scenario diagrams and equipment installation diagrams used on this page are for illustrative purposes only. Actual effects may vary due to individual product differences, software versions, usage conditions, installation methods, on-site environments, etc. Please refer to the actual usage.

* The data referenced on this page may vary depending on the actual on-site environment or equipment. The technical comparisons mentioned on the above page are for scientific explanation only and do not involve other purposes.

* There may be multiple versions of the same model of product. Product images and videos on this page are for illustrative purposes only. The actual product may differ slightly. Please refer to the actual product.

* Due to real-time changes in product versions, batches, and production supply factors, E-SHEN may adjust the text descriptions, images, and video effects on this page in real time to provide the most accurate product information, functional parameters, and appearance details to ensure consistency with the actual product. We regret that we will not provide specific notification if such modifications and adjustments are necessary. *Due to factors such as measurement environment and methods, product dimensions and parameters may contain some scientific errors.

*Within the scope permitted by law, product warranty policies may be updated from time to time depending on product category and market fluctuations. Please consult pre-sales customer service for specific warranty information. To protect your legal rights, please purchase products through officially authorized E-SHEN channels to avoid warranty service issues.

Hardware Specification

Attributes	HS-G5600-01P/HS-G5600-02P
Interface	1/2 * GPON port; 2 * 10/100/1000M Base-T; 11000M Base-X SFP/110GE SFP+; Dual power supply optional
Exchange Capacity	52.5Gbps
Packet Forwarding Rate	70.18Mpps
Memory and Storage	Memory: 512MB; Storage: 32MB
MAC Address	16K
Packet Buffer	12Mbit
Management Port	1Console Port; 1Management Port
PON	1:128 maximum splitting ratio
Weight	≤2kg
Fan	2*Fixed Fans
Power	AC: 100～240V, 47/63Hz； DC: 12V
Power Consumption	≤25W
Dimensions (W D H)	266mm180mm44mm
Environment Temperature	Working Temperature：-10℃～55℃ Storge Temperature：-40℃～70℃
Environment Humidity	Operating Humidity: 10%～95% (non-condensing) Storage Humidity: 10%～95% (non-condensing)
Environment Friendly	China RoHs,、EEE

Software Specification

Attributes	HS-G5600-01P/HS-G5600-02P
VLAN	Supports 4K VLAN 802.1Q Supports dual-tag VLAN functionality, including static QinQ based on ports & flexible QinQ
MAC	Supports 16K MAC address table entries Supports static MAC address configuration Supports black-hole MAC address filtering Supports port-based MAC address limits
PON	Support ITU-T G.984/G.988 standards Supports a physical differential distance of 20KM and a logical distance of 60KM Supports maximum 1:128 spectral ratio Support standard OMCI management functionality Support private OMCI management function (requires ONT from our company) Supports compatibility with ONT of any brand Support batch upgrade of ONT
Ring Network Protocol	Supports STP/RSTP/MSTP Supports ERPS Ethernet Ring Protection Switching Supports Loopback-detection
Port Control	Support two-way bandwidth control Support port storm suppression Support 9K Jumbo ultra-long frame forwarding
Port Aggregation	Support static link aggregation Support dynamic LACP Each aggregation group supports a maximum of 8 ports
Mirroring	Mirroring
ACL	Supports standard and extended ACLs Supports time-based (Time Range) ACL policies Provides flow classification and definition based on IP packet header information such as source/destination MAC address, VLAN, 802.1p, ToS, DSCP, source/destination IP address, L4 port number, and protocol type
Qos	Support flow rate limiting function based on custom business flow Supports mirroring and redirection functions based on custom business flows Support priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability Support port-based priority scheduling function Support queue scheduling algorithms such as SP/WRR/SP+WRR
Safety	Support user hierarchical management and password protection Supports IEEE 802.1X authentication/Centralized MAC address authentication Support Radius & TACACS+ authentication Support MAC address learning limit Support blackhole MAC functionality Supports SSH 2.0, providing a secure encrypted channel for user login Supports SNMP v3 encrypted management Supports port isolation, with hardware isolation of messages between ports Supports broadcast message rate limiting Supports IP Source Guard, automatically creating an IP+MAC+port+VLAN binding table, and manual binding of table entries Supports automatic suppression of ARP flooding attacks and ARP spoofing protection
Layer 3 Routing	Supports ARP learning and aging Supports creating Layer 3 VLAN interfaces and configuring static IPv4/IPv6 addresses Supports static route configuration Supports RIP/OSPF protocol functions Supports VRRP protocol functions
System Management	Supports Console/Telnet/SSH 2.0 command-line configuration Supports configuration management via web browser Supports FTP and TFTP file upload/download management Supports SNMP v1/v2/v3 Supports RMON Supports SNTP clock synchronization Supports system operation logs Supports LLDP (Link Layer Discovery Protocol) for neighbor device discovery Supports 802.3ah Ethernet OAM (Operations, Administration, and Maintenance) Supports RFC 3164 Syslog functionality Supports Ping and Traceroute
