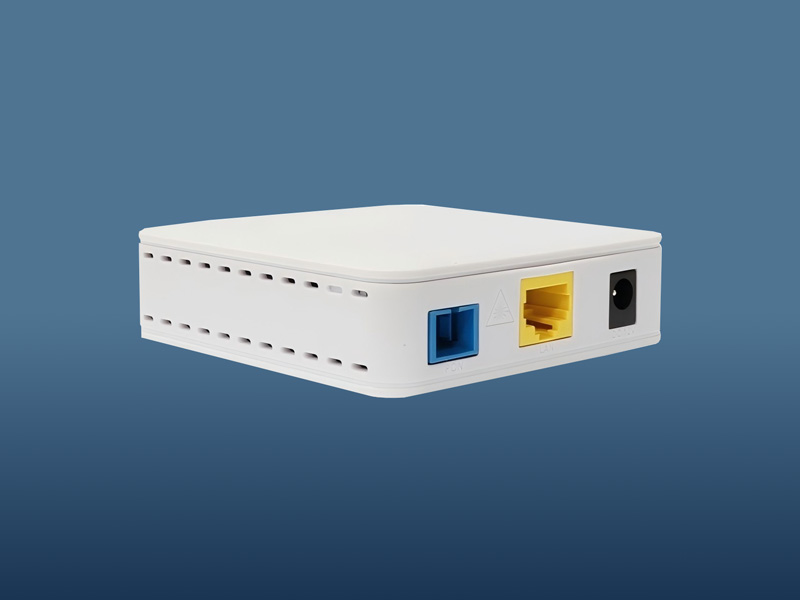

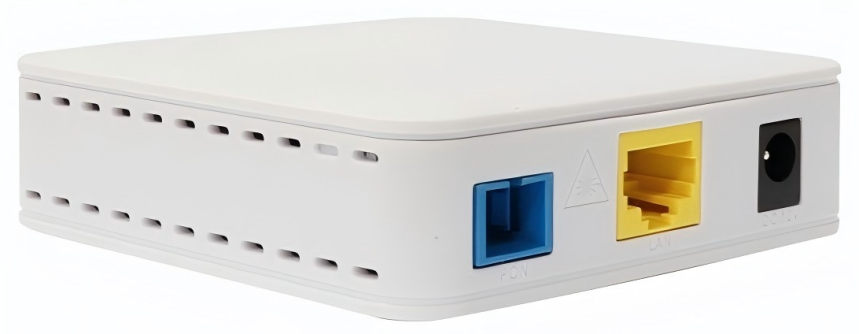

HS2201X GPON ONU 1GE HGU SFU XPON ONT. HS2201X is 1GE port XPON(GPON and EPON dual mode) HGU ONU. It is designed for meeting the multi-services needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access, video surveillance and other requirements. It is based on mature GPON and Gigabit EPON technology,

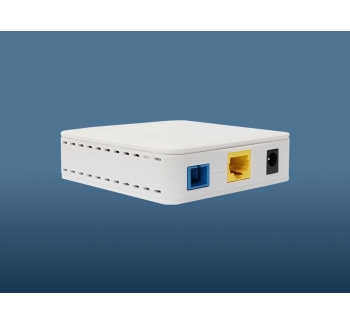

XPON 1GE HGU/SFU GPON ONU HS2201X
Overview
HS2201X is 1GE port XPON(GPON and EPON dual mode) HGU ONU. It is designed for meeting the multi-services needs of fixed network operators or cable operators, and widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access, video surveillance and other requirements. It is based on mature GPON and Gigabit EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement of GPON/EPON Equipment from China Telecom. Small size dual mode ONU can automatically detect OLT and switch PON mode, it can be used as GPON or EPON.
It can also be applied to a wide temperature environment, and also has a powerful firewall function.
Features
HGU ONU
with Realtek chip Compatible with popular
GPON & EPON OLT
based on Broadcom/PMC/Cortina chipset
Support OAM/OMCI remote configuration and maintenance.
Bridging and routing modes can be set
Support loop detection, IGMP snooping
802.1Q VLAN, QoS for priority of service
Support port speed,
storm suppression
Support Telnet, CLI, OAM and Web management
Support NAT, Firewall
Support remote software upgrad
Parameters
Items | Unit | Specifications |
PON standard. | EPON IEEE802.3ah, GPON ITU-T G.984.x | |
Optical interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM | |
Speed | Gbps | GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps |
Wavelength | nm | Tx1310, Rx 1490 |
Interface | data | 1*10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
Indicator | LED | 3 indicators, SYS, LINK/ACT, REG. |
Operating condition | ℃ | Operating temp: -5 ~ +55 |
Storing condition | ℃ | Storing temp: -30 ~ +60 |
Humidity | % | 10~90(non-condensing) |
Power supply | V | DC 12V,0.5A adapter |
Power consumption | W | ≤4 |
Dimension | mm | 82mm×82mm×25mm（L×W×H） |
Net weight | Kg | 0.08 |
